Laser Powder Bed Fusion Equipment HG100
Laser Powder Bed Fusion Equipment HG100

Laser Powder Bed Fusion Equipment HG100

Desktop Metal 3D Printer

Compact & Industrial-Precise

For Dental, R&D, Training


Share:

Inquire
  • Product Description
  • Specification

Product Description

Application Areas: Dental Frameworks and Crowns Production, Research & Education

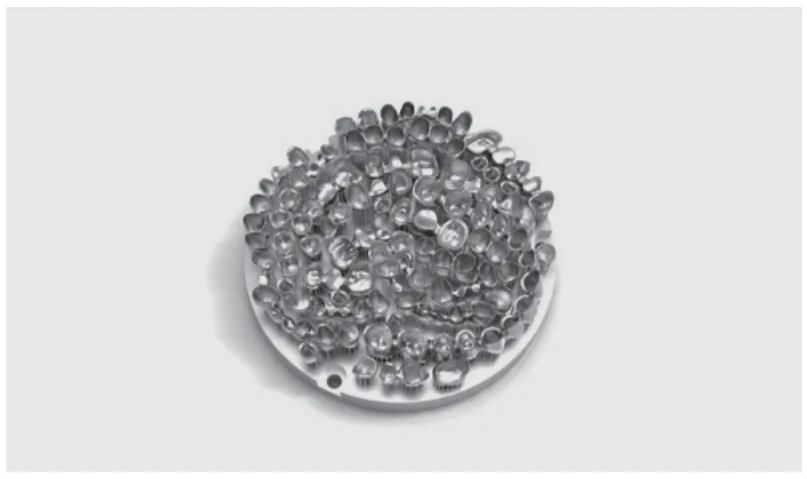

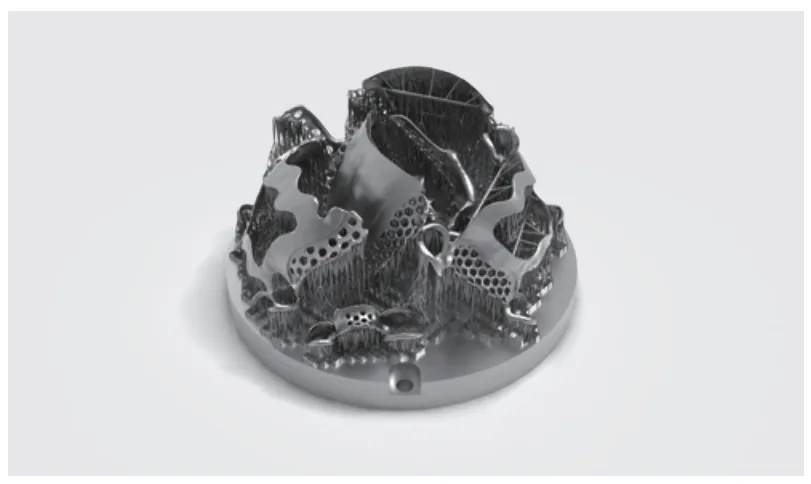

Dental Framework (HG-CoCrMo)Dental Crown (HG-CoCrMoW)


Specification

Equipment Parameters
Build MaterialSuperalloys, Cobalt-Chromium Alloys, Stainless Steel, Die Steel,etc.
Build Size ①ϕ 100×80mm ( D×H )Recoating MechanismUnidirectional Recoating
Laser System300W×1Gas SupportAr/N₂
Scan SystemHigh-Precision Scanning GalvanometerWorking Oxygen Content≤ 100ppm
Focusing SystemF-theta LensBuild Efficiency ②15cm³/h
Beam QualityM² ≤ 1.1Host Dimensions675×675×900mm ( L×W×H )
Beam Diameter50±5μmPower SupplyAC220V
Maximum Scanning Speed7m/sPower Consumption≤ 3kW
Layer Thickness30~40μmEquipment WeightApprox. 200kg


①：Excluding the thickness of the build platform.

②：The building efficiency can vary due to differences in equipment configuration, process parameters, and the operating status of the laser.

＊The above data are obtained under HG-ATOMI operating conditions. The final equipment parameters are subject to the actually sold products.
