Laser Powder Bed Fusion Equipment HG170
Laser Powder Bed Fusion Equipment HG170

Laser Powder Bed Fusion Equipment HG170

Open-Source Dental Printer

High Precision / Stable / Cost-Effective

Ideal for Dental Labs & Research


Share:

Inquire
  • Product Description
  • Specification

Product Description

Application Areas: Dental Frameworks and Crowns Production, Research & Education


Application Cases:

未标题-1_03.png 未标题-1_05.png 未标题-1_07

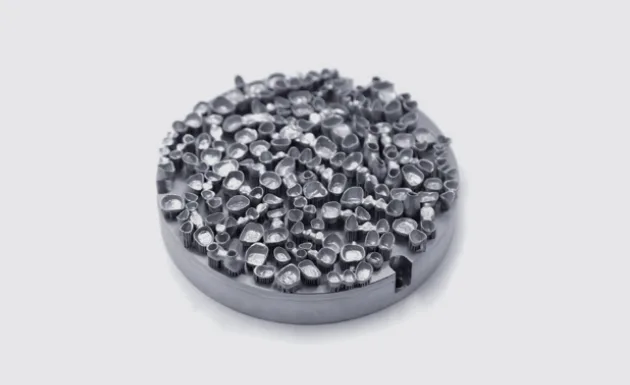

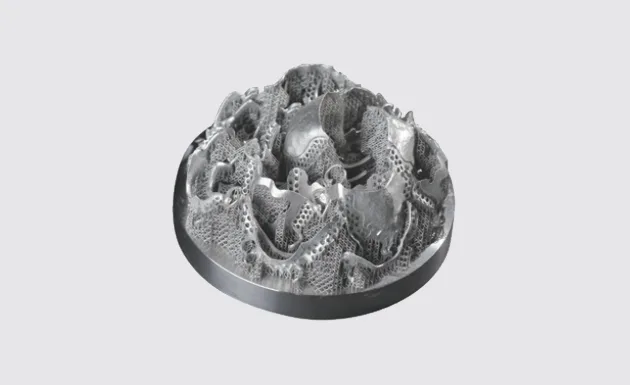

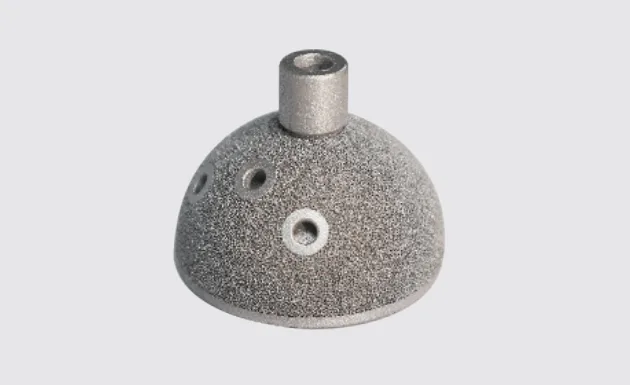

Dental Crowns (HG-CoCrMoW) Dental Frameworks (HG-Ti6Al4V Grade 23) Acetabular Cup (HG-Ti6Al4V Grade 23)

Specification

Equipment Parameters
Build MaterialCobalt-Chromium Alloys, Titanium and Titanium Alloys, Refractory Metals, Intermetallic Compounds, etc.Recoating MechanismUnidirectional Variable-Speed Recoating
Build Size ①ϕ 170×120mm ( D×H )Gas SupportAr/N₂
Laser System500W×1 /×2Working Oxygen Content≤100ppm
Scan SystemHigh-Precision Scanning GalvanometerBuild Efficiency ②25cm³/h; 50cm³/h
Focusing SystemF-theta LensHost Dimensions1400×800×1600mm ( L×W×H )
Beam QualityM² ≤ 1.1Installation Dimensions3200×2400×2180mm ( L×W×H )
Beam Diameter40~80μmPower SupplyAC220V
Maximum Scanning Speed7m/sPower Consumption7kW /9kW
Layer Thickness20~100μmEquipment WeightApprox. 700kg
